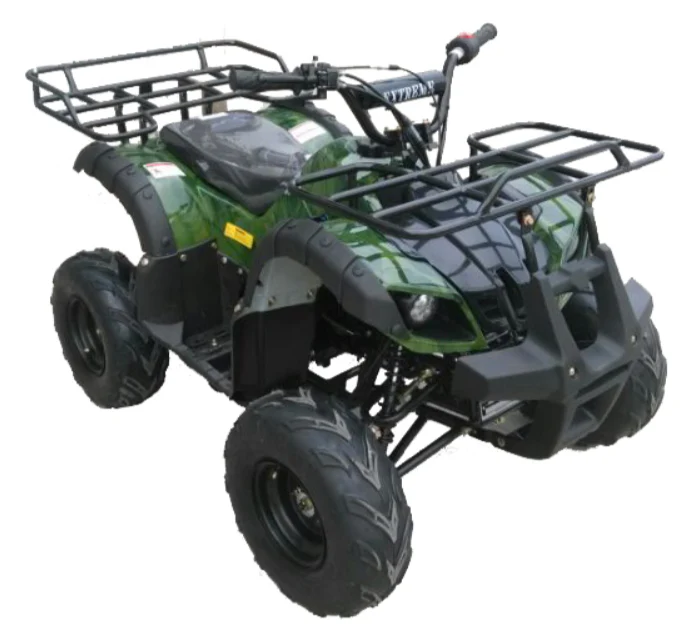

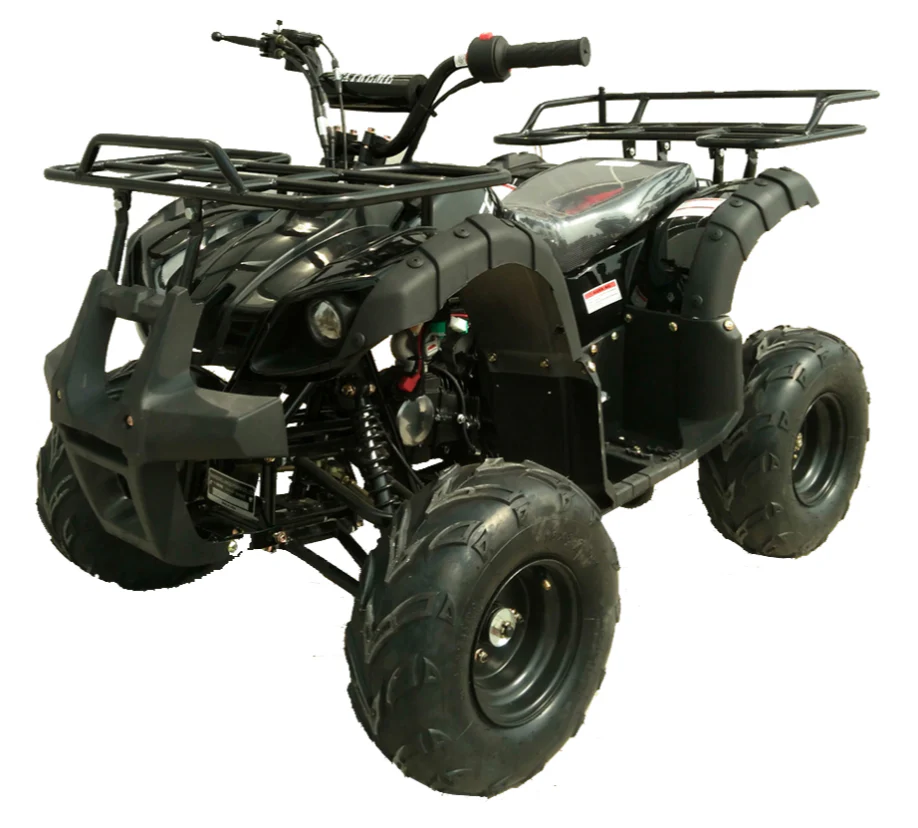

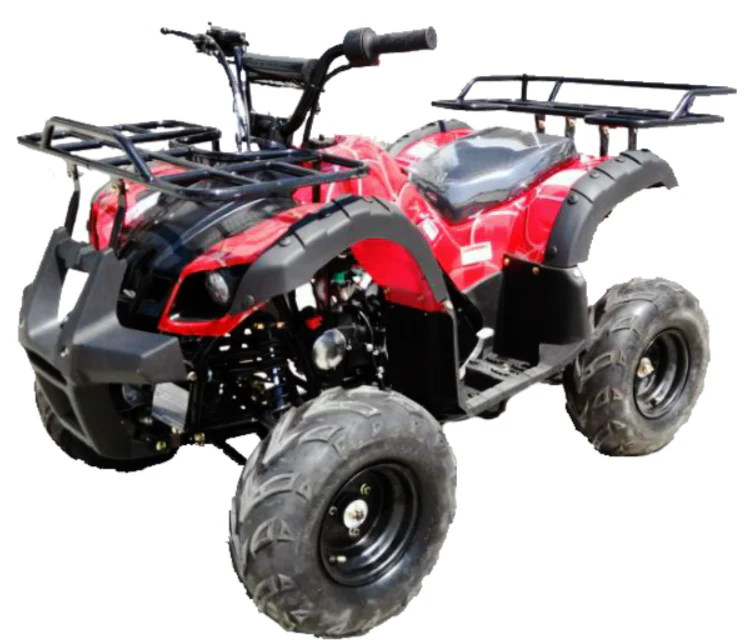

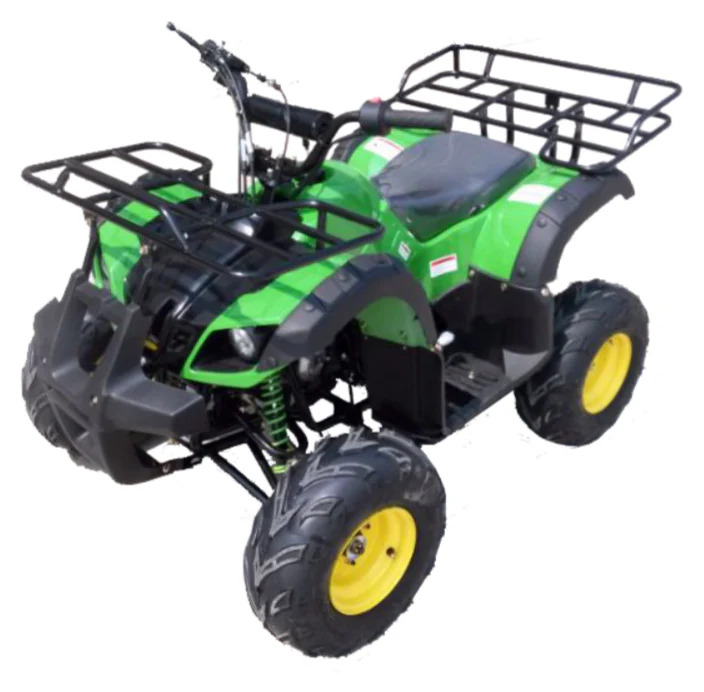

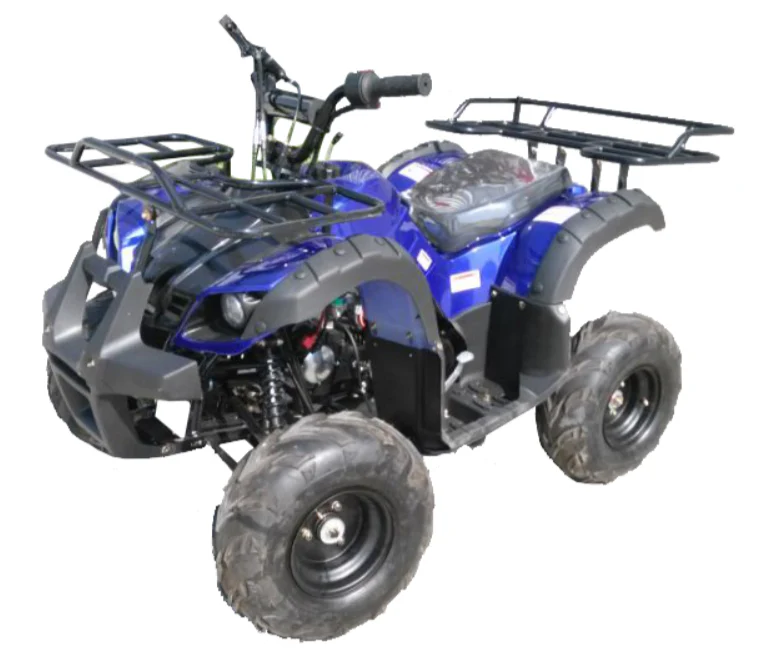

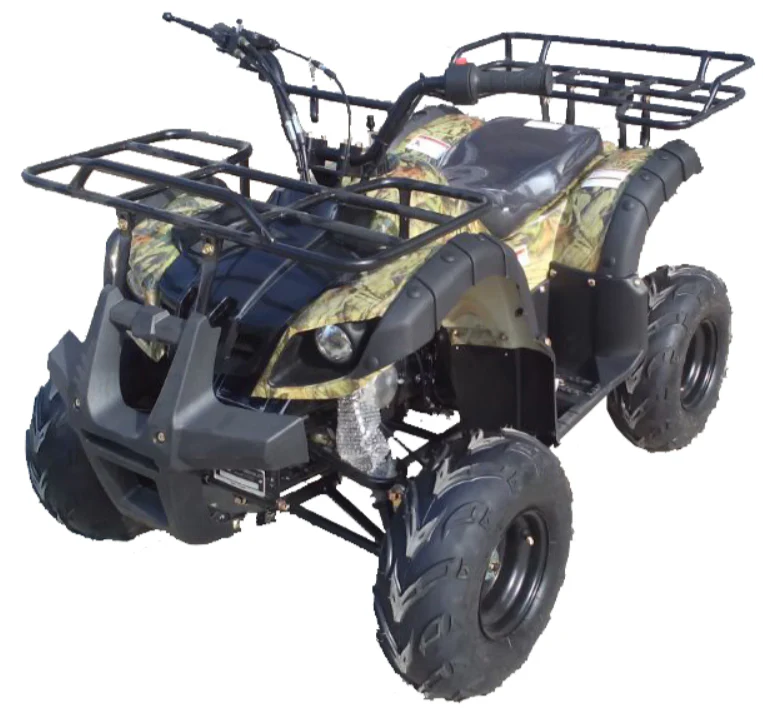

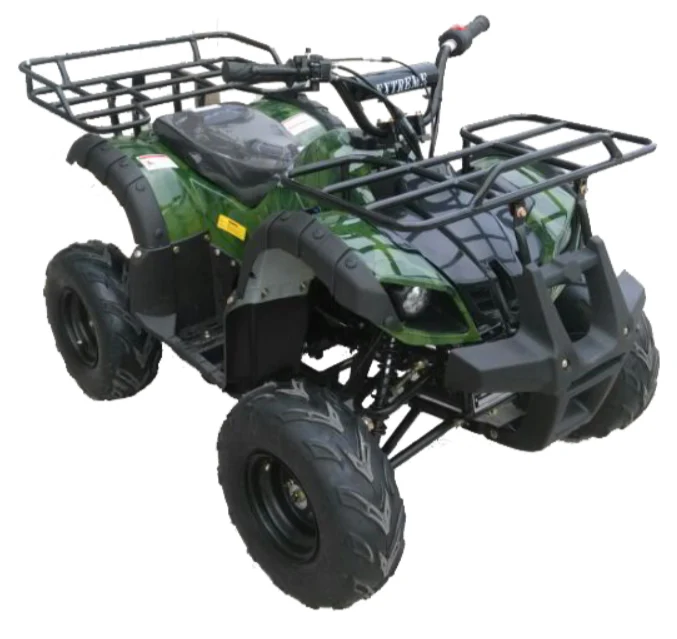

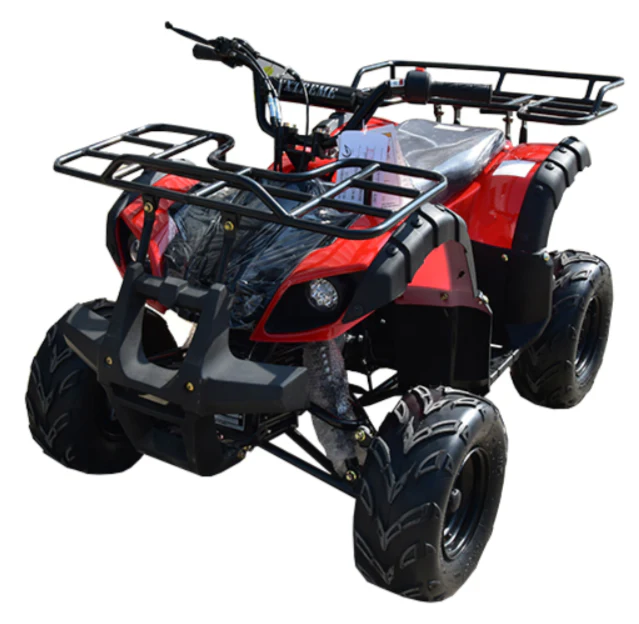

Rider 7 Vitacci 125cc ATV

MODEL NO.

Rider 7'' Tire 125cc

CONFIGURE.

Colors available

PINKCAMO, ARMY GREENCAMO, BLUE, RED, BLACK

Decals

N

Tool kit

Y

Remote start

Y

Remote engine stop

Y

Remote alarm

Y

Speed limiter

Y

Assembly required

*

ENGINE INFO.

Engine type

Four Stroke ,single cylinder,

Engine brand

Tianzong

Displacement

110 cc, 125 cc

Cooling

Air cooled

Max horsepower

5.2kW/8000(r/min)；

Max torque

7.0N.m/5000(r/min)

Bore*stroke

52.4×49.5 mm

Max speed

55km/h

Climbing ability

≥11°

Ignition

C.D.I

Starting system

Electric start

Battery

12V  4AH

Carburetor brand

Pz19

Engine oil

15W/40-SE

Gear oil

*

CHASSIS ETC.

Clutch

automatic

Transmission

1-forward,1-neutral,1-reverse

Driveline

Chain drive

Driving wheel

*

Suspension,front/rear

FR：DOUBLE / RR：SINGLE

Brakes,front/rear

FR:DRUM   RR:DISC

Brake operation

HAND+foot

Tires; Front/Rear

16 x 8.0-7 / 16 x 8.0-7

Fuel capacity/type

2.3L

Weight,G.W./N.W.

*

Max load

90kg

DIMENSIONS

Wheelbase

890 mm

OA  L*W*H

1340×850×950 mm

Height to seat

680

Min ground clearance

100mm

Carton size

1310×760×650mm
