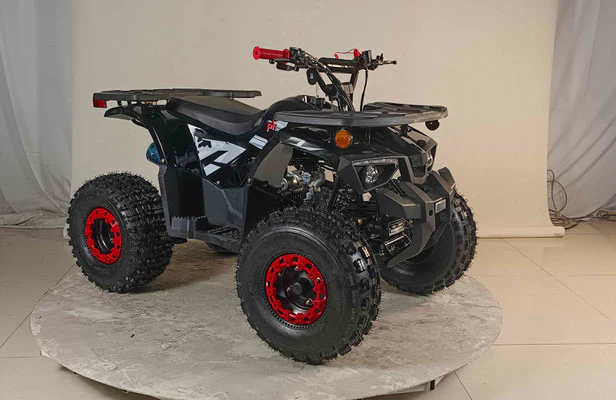

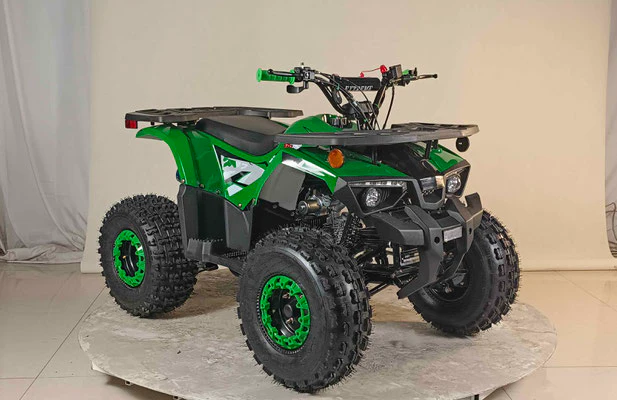

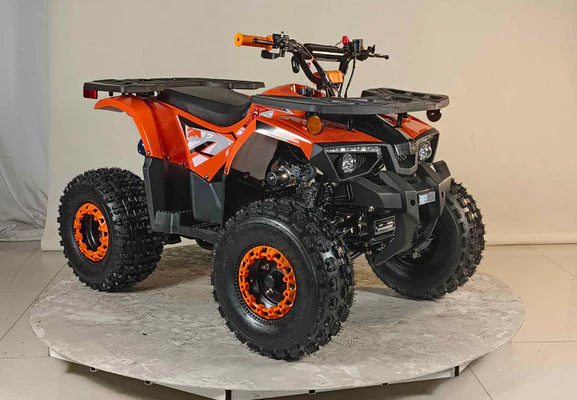

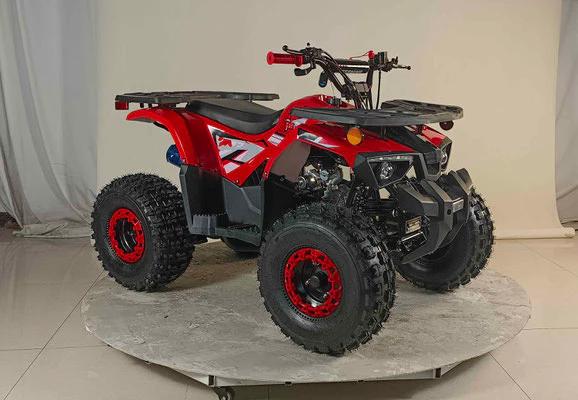

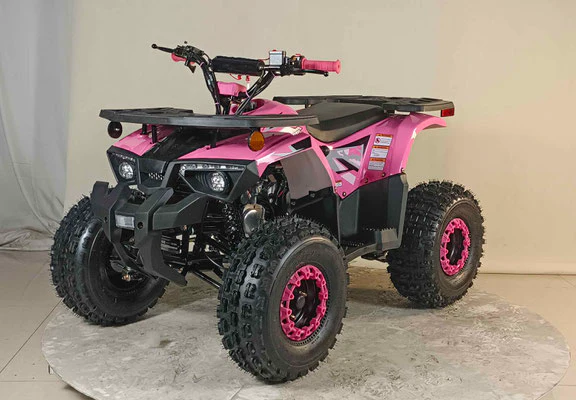

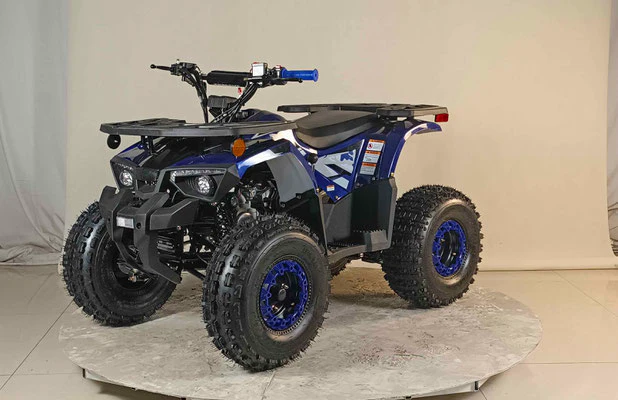

125CC PHANTOM ATV

Specifications

ENGINE
Type	125cc,风冷(Air cooled),4冲程(4-stroke),单缸(1-cylinder)
Bore x Stroke	52.4mmX55.5mm
Compression Ratio	9.1:1
Carburetor	PZ20
Ignition	CDI
Starting Time	(Electric start)
Transmission	(R-N-F)
Drive Train	(Chain Drive)
Max. Torque	8.0N.m/5500r/min
Max. Power	5.3kw/7500r/min
CHASSIS
Suspension/Front	(Independent double swing arm)
Suspension/Rear	Single swing arm)
Brakes/Front	Drum）
Brakes/Rear	(Ventilated Hydraulic disc)
Tires/Front	19 x 7-8半径(19x 7-8 radial)
Tires/Rear	18x 9.5-8半径(18x9.5-8radial)
DIMENSIONS
L x W x H	1440mmX940mmX940mm
Seat Height	710mm
Wheelbase	960mm
Ground Clearance	135mm
Front track	760mm
Rear track	670mm
Battery	12V/5Ah
Fuel Capacity	2L
Dry Weight	106KG
Max. Load	75KG
Package Size	53.9X30.3X24.8 IN
Loading Quantity	96台/40高柜 (96pcs/40HQ)
MAIN PERFORMANCE
Max. Speed	48km/h
Fuel Consumption	2.6L/100kg
Starting Time	≤15s
Brake distance	30km/h≤6.5m
